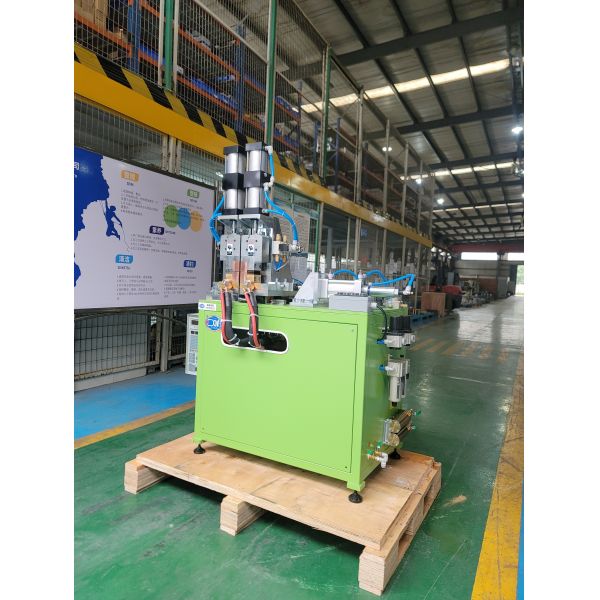

8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

Product Categories

Robotic Welding Gun [6]
Spot Projection Welding Machine [61]
Portable Spot Welding Machine [20]
Seam Welding Machine [20]
Butt Welding Machine [15]
Diffusion Welding Machine [6]
Laser Welding Machine [6]
Table Spot Welding Machine [4]
Capacitor Discharge Spot Welder [9]
Kickless Cable [26]
Automatic Spot Welder [14]
Sheet Metal Welding Machine [8]
Wire Mesh Welding Machine [10]

Chengdu Xinwei Welding Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

Name: 8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine
Brand: Xingweihan
Price: 2 USD

Buy cheap 8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine product

Frequency : 60 Hz, 50 Hz

input voltage : 220 V, 380 V, 480V

power (kw) : 40-200KVA

Weld method : Butt Welding

Brand Name : Xingweihan

Place of Origin : Sichuan, China

condition : New

dimensions : Customized

usage : Butt Welding Machine Price

warranty : 12 Months

weight (kg) : 500

Product name : 8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

Machine type : Butt Welding Machine For Wire

Function : Butt Flash Welding Machine

Application : Aluminium Tube Butt Welding Machine

Keyword : 8Mm Butt Welding Machine

Type : Wire Forming Butt Welding Machine

MOQ : 1 Set

After Warranty Service : Video technical support, Online support and Spare parts

After-sales Service Provided : Free spare parts, Field installation, commissioning and training

Certification : CE. RoHS

MOQ : 1 set

Price : $2,800 / set

Contact Now

8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

ChengDu Xingweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.

A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.

And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）

Dedicated, so professional; Winning by quality, precision to thrive

Product Description

8Mm Copper Rod Resistance Steel Wire Ring Butt Welder Welding Machine

The butt welding machine adopts the principle of resistance welding. By applying a certain pressure between two metal joints to be welded and passing high-density current, the metal atoms at the joint are melted due to the thermal effect of the current, forming a metal bond and achieving a firm connection of the metal. Widely used for butt welding between pipes, rods, plates, and profiles of carbon steel, alloy steel, and non-ferrous metals, or between dissimilar metals.

Technical Parameters

Item/Model	DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%(KVA)	40	63	80	100	125	160	200
Rated primary power(V)	380	380	380	380	380	380	380
Secondary Voltage(V)	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency(HZ)	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current(KA)	14	15	16	18	20	28	34
Max. weld power(KVA)	62	86	170	280	300	330	410
Throat(MM)	400	400	400	450	450	450	450
Max.Froce at electrodes(N)	6000	6000	10000	10000	10000	12000	12000
Working stroke(MM)	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar(L/min)	6	6	8	8	8	10	10
Electrodes tip(MM)	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms(MM)	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate(MM)	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel(MM)	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

Main Features

1. Pneumatic or hydraulic pressurization is used: with high clamping force, it does not slip during forging and welding of the workpiece, and the welding performance is stable.

2. Dual guide rail guidance: anti-wear, smooth and stable movement, high alignment of workpiece interfaces.

3. Top forging mechanism: Adopting a paint mixed top forging mechanism, it works smoothly, has high top forging force, and high efficiency.

4. Mold electrode: Chromium zirconium copper, excellent material, not afraid of high temperature wear, good conductivity.

Detail Images

Stable Pressure Application

The direct pressure integrated pressure application mechanism has good follow-up and does not slip during workpiece welding, with stable speed.

Easy To Operate

Using a microcomputer controller, it can analyze, adjust and control the welding process parameters of the welding machine, and the operation is simple.

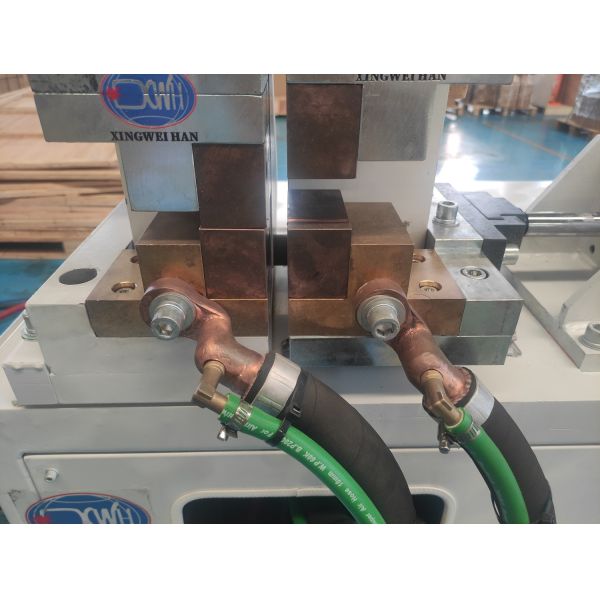

Copper Alloy Electrode

Made of high-quality materials such as chromium zirconium copper, it has good conductivity and can be used with confidence.

Scene Images

Other Color

Butt Welding Machine

Our factory can customize according to your requirments. More details, please contact!
