Full Automatic Flash Butt Welding Machine For Band Saw Blade Repair Welding

This fully automatic band saw blade butt welding machine is an industrial-grade system that places operational safety and process adaptability at its core, alongside efficient and precise welding. It integrates a high-rigidity main frame, precision pneumatic transmission, an intelligent welding controller, a secondary circuit, and a transformer for stable and reliable operation. The human-machine interface is intuitive and user-friendly, facilitating easy parameter setting and status monitoring. The welding area is equipped with a high-strength transparent protective cover that effectively contains spark splash without hindering real-time observation of the process. Capable of the butt joining of blades with different cross-sectional areas, it delivers high-quality welds for various band saw types including slaughter, woodworking, and metal cutting blades, offering a professional solution that balances production efficiency with operational safety

• Physically Isolating Transparent Guard: The welding area is fully enclosed by a physical barrier—a transparent cover made of high-temperature and impact-resistant polycarbonate. It effectively contains high-temperature sparks and metal splash during flash welding, preventing burns and fire hazards.

• Electrical Safety Interlock: The protective cover is electrically interlocked with the control system. If the cover is not closed or is accidentally opened, the welding output is automatically cut off and startup is prohibited. This ensures welding only proceeds with adequate protection, fundamentally preventing operator access to hazardous zones.

• Pneumatic System Safety Monitoring: The pneumatic system is equipped with an air pressure detection switch and a low-pressure alarm. If pressure falls below the set value, the machine automatically alarms and prohibits the welding program from starting. This prevents workpiece loosening or upset failure due to insufficient clamping force, ensuring process safety and controllability.

• Overload & Overheat Protection: The welding transformer and controller feature built-in overload and overheat protection. Output is automatically cut off if current or temperature exceeds safe limits, preventing electrical component burnout from prolonged overload and protecting operators from secondary incidents.

• Physical Separation of Human & Machine Zones: The machine structure provides physical separation between the manual loading/unloading station and the core welding zone. Operators' hands remain away from the welding area during blade handling. Combined with the protective cover and safety interlock, this creates multiple protective barriers, significantly reducing operational safety risks

Double-layer Cylinder

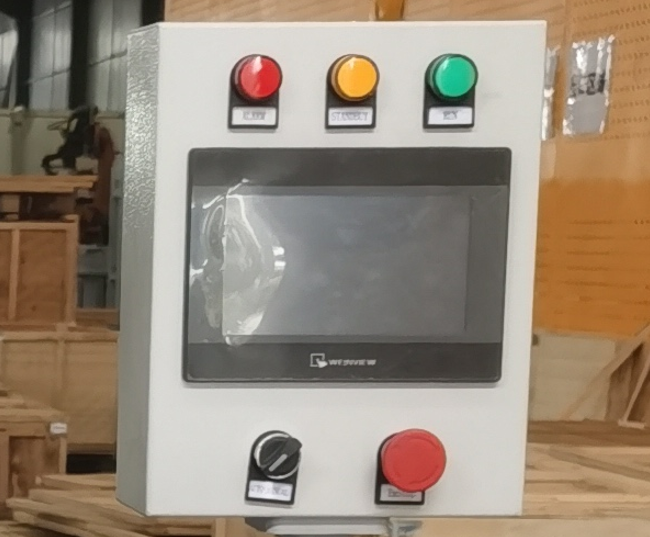

Human Computer Interaction Interface

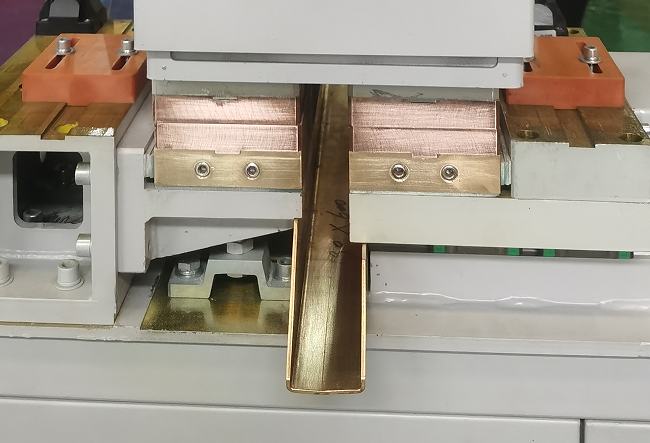

Copper Alloy Electrode

Waterway Components

Our factory can customize according to your requirments. More details, please contact!
